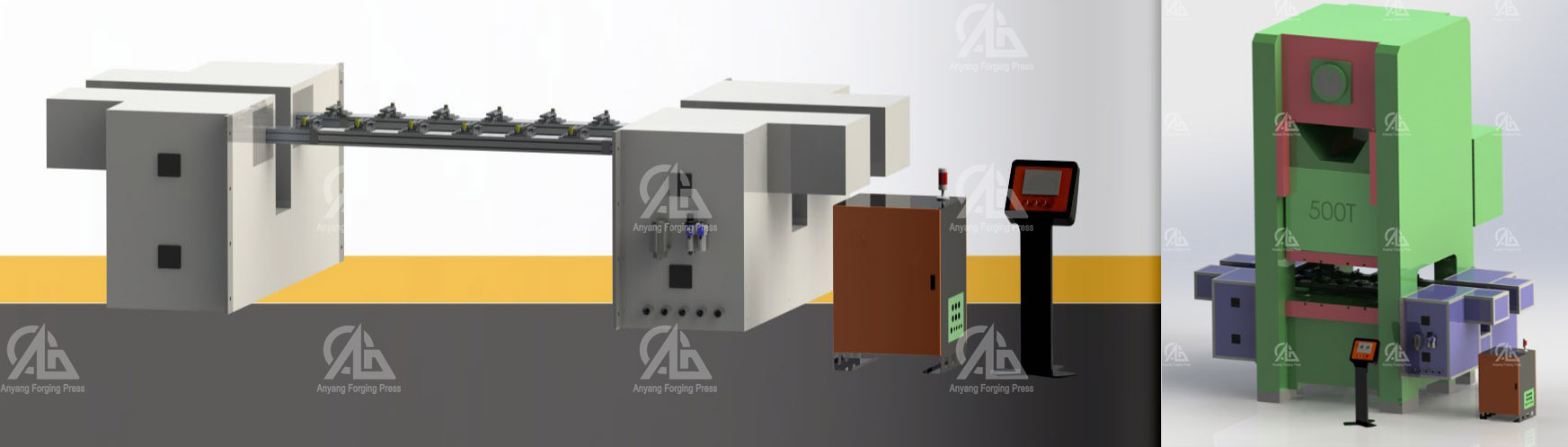

3-axis Walking beam type forging robot Application
- 1. Three / four sets of molds arranged in one machine, the mold center between each other are the same, as well as the same mold height.
- 2. Suitable for the automatic forging on hot close die forging press, electric screw press, fast speed, high accuracy.
- 3. Suitable for variety of parts in the same automatic forging line, quick programming and debugging.
3-axis Walking beam type forging robot Technical:
- 1. Single machine forging, advanced automatic product.
- 2. 3-axis single arm walking beam structure, high running speed.
- 3. Separate structure, convenient installation.
- 4. Automatic forging with existing machine tools.
- 5. Simple operation.
3-axis Walking beam type forging robot Parameter
|Drive Mode||AC servo||AC servo|
|Repeated Running Accuracy:||±0.20mm||±0.20mm|
|Installation||Mounted on frame||Mounted on frame|
